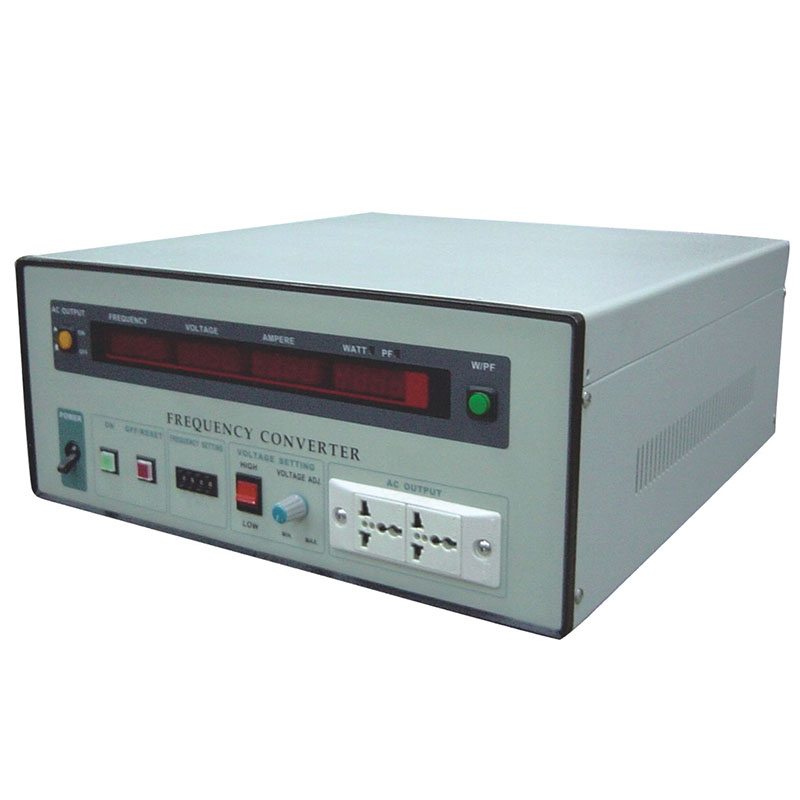

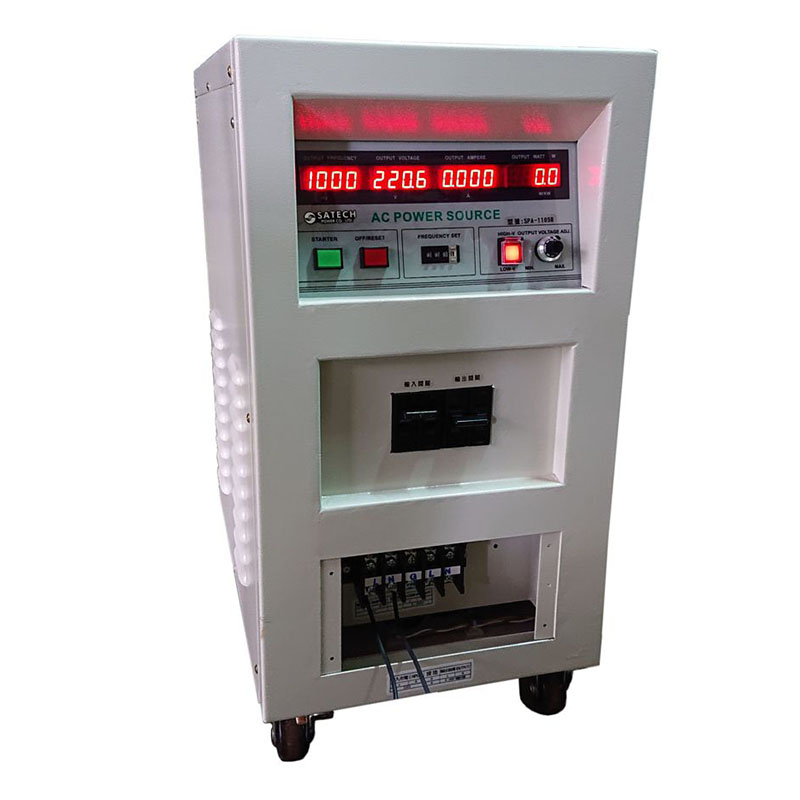

Model：SPA series (1phase 500VA-45KVA)

Type:
IGBT / PWM Type

Capacity:
1Phase 500~45KVA

Made in
Taiwan ROC

Add in inquiry Download

INDUSTRIAL FIELD :

• AC Fan Test

• Air Conditioner Test

• Compressor Test

• Computer / Monitor / Scanner & Peripherals

• Copier / OA Equipment

• Electric Machinery Products Test

• Electronic Ballast Testing

• Home Electrical Appliances

• Motor Test

• OQC (FQC) Testing

• Product Test

• QA/QC/Life & Safety Testing

• Switching Power Supply Testing

• Transformer / Triac / SCR Test

• Suitable for Any load, such as Capacitive

• (Switching Power Supply), Inductive

• (Motor-driving Equipment, Compressor

• Transformer), Resistive & Non-linear loads

• GENERAL LAB :

• OQC (FQC) Testing

• Product Researches & Development

• Product Test

• QA / QC / Life & Safety Testing

• Standard Power Source for EMI / EMC / Safety Testing

• Superior AC Power Source for R&D or Lab

400 HZ:

• Airport Grounding Facilities, Include

• Airport Terminal, Control Tower

• Any Equipment / Instruments Have

• 400Hz Frequency

• Avionics, Marine, Missile, Projectile

• Facilities

• Military System Diagnostics, Include Airforce,

• Army, Navy, Navigation

• Switching Power Supply

• Telecommunication Facilities

Variable Voltage Variable Frequency!

ADJUSTABLE

• 0 to 300 VAC Output Voltage Adjustable

• 40 to 499.9Hz Output Frequency Variable

• Step type Counter

RELIABILITY

• IGBT Module generates High Efficiency, Low Noise and Max. Reliability

• Precise and Stable Frequency (Crystal Controlled) Output

• Units are equipped with Electronic Circuits / Circuit Breaker / Buzzer Alarm for Over Voltage, Over Current, Over Temperature, and Short Circuit Protection

• Strong Overload Capability

EASY OPERATION

• Easy-to-read 4 True RMS Digital Meters display Output Frequency, Voltage, Ampere & Wattage readings in one time.

PURE

• Pure and Consistent Sinewave Output

• Full Galvanic Isolated. No Harmonic Distortion (EMI, EMC).

COMPACT

• PWM technology enhances Compact Size, Light Weight

FAST

• Fast Response Time

CUSTOMIZATIONS WELCOME

Specifications - Single Phase

 MODEL SPA
11005		 SPA
1101		 SPA
1102		 SPA
1103		 SPA
1105		 SPA
1108		 SPA
1110		 SPA
1115		 SPA
1120		 SPA
1130		 SPA
1145
 Capacity  KVA 0.5 1 2 3 5 8 10 15 20 30 45
 Type IGBT / Pulse Width Modulation Type
    INPUT
 Voltage (Select One) 1phase 2wire: 110V (2 to 5KVA) / 220V / 230V / 240V
 Voltage Range ±10%
 Frequency (Select One) 47 ~ 63Hz; Option 400Hz ±5%
    OUTPUT

 Voltage

 (L-N)

  Low Range 0 ~ 150V
 High Range 0 ~ 300V
 Option 0 ~ 600V
 Voltage Regulation ≦ ±1%
 Frequency 40Hz to 499.9Hz (Key Lock Setting)
 Frequency Stability ≦ ±0.01%
 Total Harmonic Distortion Pure Sine Wave, ≦2%
 Frequency Meter 4 Led Digital Display     Res. 0.1Hz / Step
 Voltmeter 4 Led Digital Display     Res. 0.1V
 Ammeter 4 Led Digital Display     Res. 0.1A
 Wattmeter 4 Led Digital Display     Res. 0.1W
    CURRENT LIMIT (L-N)
 LOW Range @120V 4.2A 8.4A 16.8A 25.0A 41.6A  63.0A 83.2A 125.0A 166.4A 250A 375A
 HIGH Range @240V 2.1A 4.2A 8.4A 12.5A 20.8A 31.5A 41.6A 62.5A 83.2A 125A 188A
    PROTECTION
 Protection

Electronic Circuits for Over Load, Over Voltage, Over Temperature,
Short Circuit Protection
    WORKING ENVIRONMENT
 Ambient Temperature 0 ~ 40°C
 Relative Humidity 0 ~ 90% (Non-Condensing)
    PHYSICAL
 Dimension(W*D*H/mm) 425*500*190 350*530*675 350*650*855 450*630*1000
 Net Weight (kgs) 27 28 45 60 70 80 120 130 150 200 265

♦  All specifications are subject to change without prior notice.
♦  Custom-made specifications are acceptable.

CUSTOMIZATIONS

► 0 ~ 600V Output Voltage Adjustable

► 3 Output Voltmeters easy to read each phase's voltage in one time

► Single And Three Phase Configurations

► Shock Mount Option

The cabinet can be shock mounted using optional rubber or coil type isolators.

This will enable the unit to withstand shock levels as specified in MIL-S-901.

► Base with Anchor Bolt Fixing

► Drip Shield

This option offers protection against falling or dripping liquids.

Introduction

It is a machine that takes electrical input power at one frequency and voltage to provide variable output voltage and frequency for testing loads over their full voltage and frequency. Solid State units convert incoming AC Power into DC power, and then convert the DC into the required Output Power. Its design is based on advanced DSP and IGBT / High Frequency PWM (Pulse Width Modulation) technology. By employing advanced DSP circuit to offer precise and high speed measurement of true RMS voltage, true RMS frequency, true RMS current, true power and power factor, IGBT module to reduce circuit complexity, PWM technology to deliver high power output in a light weight and compact casing. Internally, a high quality Pure Sine wave is generated and crystal oscillation to enhance frequency stability.
