IGBT / PWM Type
Capacity:
1KVA (1U)
Made in:
Taiwan, ROC
• AC Power for Battery
• ATS
• Automation
• Car Electrification
• Civil and Military Nautical
• Emergency Lighting
• ETC
• Medical Equipment
• Railway Field
• Telecom System
Clean,Highly Regulated Power Supply !
• For Telecom:12 / 24 / 48Vdc DC Voltage.
• 1U / 2U / 3U 19" or 23" Rack-mount type.
• 1U / 2U / 3U 19" or 23" Open Frame Cabinet.
• Digital Displays.
• Pure Sine Wave Output (THD <3%) Resistive Load.
• Bypass Function.
• Advanced Microprocessor.
• Built-in Transfer Switch.
• Loading & Temperature Controlled Cooling Fan.
• Output Frequency : 50 / 60Hz Switch.
• Adjustable Output Voltage.
• Input Surge protection & EMI Suppression.
• Modularized IGBT infrastructure to ensure better durability.
• Cold start function (DC start) functionality allows unit to operate with battery only.
• RS-232 Interface / Wire Connection to PC.
• Option: SNMP Interface / Dry Contacts / Remote Control.
• Protection : Input Under Voltage, Input Over Voltage, Overload, Short Circuit,
Low Battery Alarm, Over Temperature.
• CUSTOMIZATIONS WELCOME

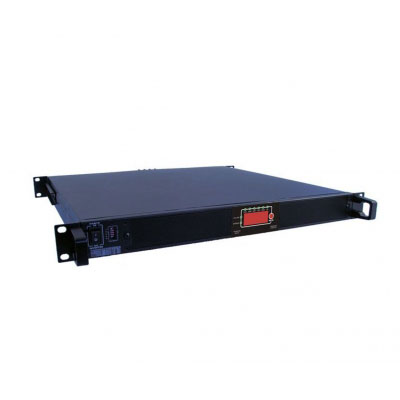

1U 19" Rack Mount Type (1KVA)
| Model |
A:110V | E: 220V |
SPI-R1 1201A |
SPI-R1 2401A |
SPI-R1 4801A |
SPI-R1 1201E |
SPI-R1 2401E |
SPI-R1 4801E |
||||||
| Outlook | Rack Mount | 19" 2U | |||||||||||
| Capacity | Continuous O/P Power | 1KVA / 850W |
|||||||||||
| Surge Rating | 90W @ 3 Minutes |
||||||||||||
| 950W @ 3 Seconds |
|||||||||||||
| 1000W @ 1 Second |
|||||||||||||
| DC Input | I/P Voltage | 12Vdc | 24Vdc | 48Vdc |
12Vdc | 24Vdc | 48Vdc |
||||||
| I/P Voltage Range | 10-16Vdc | 20-32Vdc | 42-62Vdc |
10-16Vdc | 20-32Vdc | 42-62Vdc |
|||||||
| Over Voltage Alarm | 15.5Vdc | 31.0Vdc | 61.0Vdc |
15.5Vdc | 31.0Vdc | 61.0Vdc |
|||||||
| Over Voltage Cut-off | 16.0Vdc | 32.0Vdc | 62.0Vdc |
16.0Vdc | 32.0Vdc | 62.0Vdc |
|||||||
| Under Voltage Alarm | 10.5Vdc | 21.0Vdc | 43.0Vdc |
10.5Vdc | 21.0Vdc | 43.0Vdc |
|||||||
| Under Voltage Cut-off | 10.0Vdc | 20.0Vdc | 42.0Vdc |
10.0Vdc | 20.0Vdc | 42.0Vdc |
|||||||
|
Bypass (AC Input) |
Nominal Voltage |
A: 1 Phase 2W+G, 110Vac (90-130Vac) |
E: 1 Phase 2W+G, 220Vac (180-260Vac) |
||||||||||
| Frequency | (50Hz - 60Hz) ± 3% | (50Hz - 60Hz) ± 3% | |||||||||||
| Protection | Electronic Circuits & AC Circuit Breaker | ||||||||||||
| Bypass | Inverter ⇔ Bypass | 4 - 6 ms | |||||||||||
| Inverter⇔Bypass Mode | Inverter Mode or UPS Mode by Switch (Option) | ||||||||||||
| AC Output | AC Voltage Adjustment |
A: 1 Phase 2W+G, 100 / 110 / 115 / 120Vac (Switch Selectable) |
E: 1 Phase 2W+G, 200 / 220 / 230 / 240Vac (Switch Selectable) |
||||||||||
| Voltage Accuracy | < 2% at Linear Load | ||||||||||||
| Frequency | 50Hz / 60Hz ± 0.05% (Switch Selectable) | ||||||||||||
| Output Wave Form | Pure Sine Wave, <3% THD @ Resistive Load | ||||||||||||
| Output Power Factor | 0.85 | 0.85 | |||||||||||
| Peak Output Current | 15A | 9A | |||||||||||
| Efficiency @ Full Load | 86% | 88% | 89% | 87% | 90% | 92% | |||||||
| No Load Current Draw | 0.75A | 0.4A | 0.3A | 0.7A | 0.35A | 0.25A | |||||||
| Standby Current Draw |
≤ 1.5W Power Saving Mode |
≤ 1.5W Power Saving Mode |
|||||||||||
| Protection | Protection | Overload, Short Circuit, Reverse Polarity (Fuse), Input Under Voltage, Input Over Voltage, Over Temperature | |||||||||||
| Safety | EN60950-1 (File No. E324561) |
EN60950-1 | |||||||||||
| EMC |
FCC Class B |
EN55022: 2010/AC:2011 Class B EN55024: 2010 EN61000-3 -2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 IEC61000-4-2: 2008 IEC61000-4-3: 2006+A1: 2007+A2: 2010 IEC61000-4-4: 2012 IEC61000-4-5: 2005 IEC61000-4-6: 2008 IEC61000-4-8: 2009 IEC61000-4-11: 2004 |
|||||||||||
| Indicator | Digital Display | OVP, UVP, OTP, OLP, VAC, AMP, WATT, VDC, TEMP, Hz | |||||||||||
| Communication | Interface Control Unit |
RS-232C with Baud Rate 2400, 4800, 9600, 19200 (Switch Selectable) Option-1: SNMP Interface Option-2: Dry Contact: OVP, UVP, OTP, OLP |
|||||||||||
| Environment | Operating Temperature | -20°C ~ 50°C | |||||||||||
| Storage Temp. Range | -30°C ~ 70°C | ||||||||||||
| Relative Humidity | 0~90%, non-condensing | ||||||||||||
| Cooling | Air Forced Fan | Loading & Temperature Controlled Cooling Fan | |||||||||||
| Mechanical | Dimension | W424 * D416.8 * H44mm | |||||||||||
| Net Weight | 7.5kgs | ||||||||||||
| Wire Gauge |
For AC Input / AC Output |
#12 |
|||||||||||
| WARNING |
The proper connection needs to be made in reference to Line / Neutral |
||||||||||||
* All specifications mentioned above are subject to change without prior notice.
CUSTOMIZATIONS
► HOT STANDBY
► SNMP Interface
► Dry Contacts
► Remote Control
Introduction
12 / 24 / 48Vdc Telecom Inverter, Rack-mount Type is designed for long “MTBF” and continue to provide manageable and dependable AC power for network demands. Featuring an integrated utility bypass function, pure sine wave output and low EMI / RFI emissions, SPI-R series Telecom Inverters are well equipped for Telecom and other demanding critical applications.
An intelligent microprocessor-based control and smart software for power management include alerts on the LED display interface that ensure safety and reliability.
A SNMP option is available; and would allow the user remote communication access to the inverter. SPI-R Series Power Inverters are among the most reliable systems available for electricity and other demanding critical applications.
