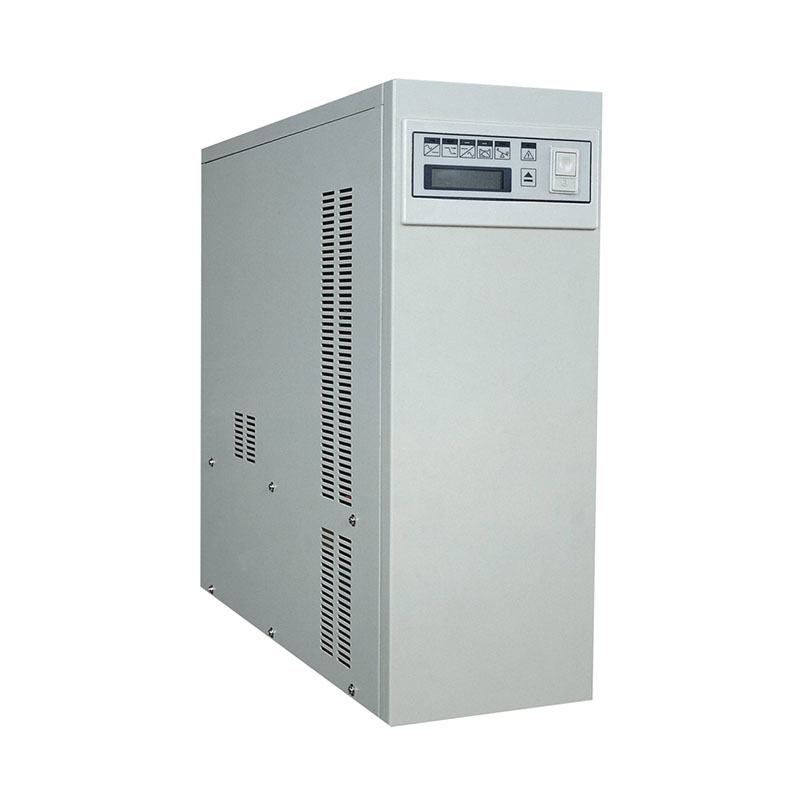

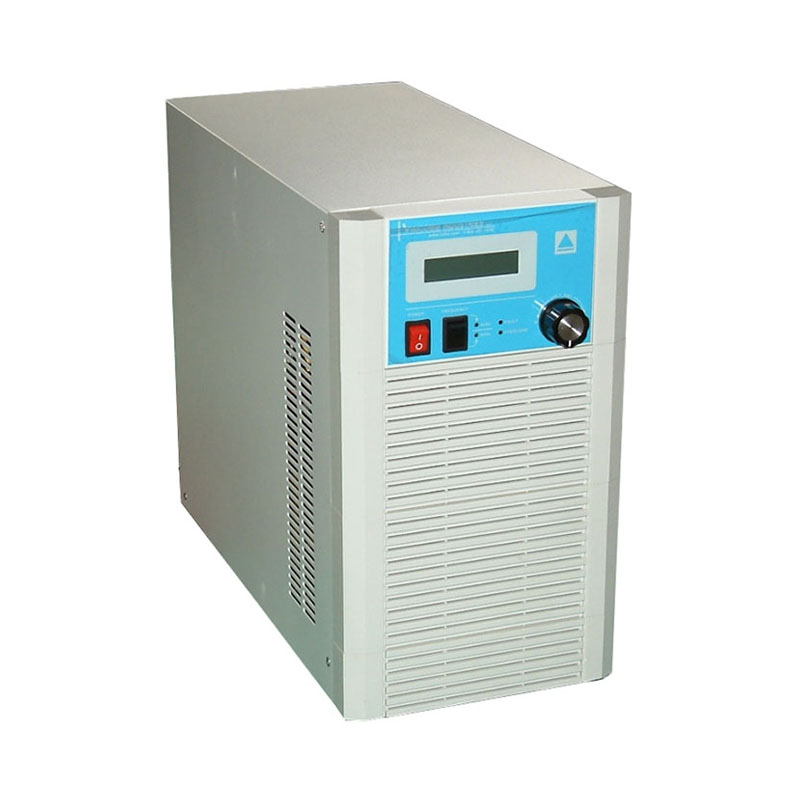

1 Phase Static (FIXED) Voltage/Frequency Converter

Model：SAF series

Type:
IGBT / PWM Type

Capacity:
1~10KVA

Made in:
Taiwan, ROC

Add in inquiry Download

APPLICATION

• Voltage and / or Frequency Conversion

• Power Conditioning & Freq. Stabilization

• Factory Automation Equipment

• Auto-test Equipment

• Alarm / Security Monitoring Systems

• Cellular Sites

• Export Product Testing

• Laboratory

• Medical Equipment

• Precise Measuring & Testing Equipment

• Sophisticated Monitoring Systems

• Sophisticated Instruments

• TV & Radio Broadcasting Stations

• Option: 400HZ APPLICATIONS:

• ⇒ Military System Diagnostics

• ⇒ Telecommunication Facilities

• ⇒ Avionics, Marine, Missile, Projectile Facilities

• ⇒ Airport Grounding Facilities include

• ⇒ Airport Terminal, Control Tower

• ⇒ Navigation

• ⇒ Any Facilities / Instruments have

• ⇒ 400Hz frequency Power System

FEATURES

Constant Voltage Constant Frequency !

► Compact Size and User-friendly Design with LED & LCD Display

► CUSTOMIZATIONS WELCOME

Please contact us, we will welcome the opportunity to review your problems and provide you with necessary solutions.

► Unique Air-cooling System

► Optional AVR for Wider Input Voltage Range and Operating in Harsh Environment

► Front Side Operation Design for easy installation and maintenance

► Full Galvanic Isolated. No Electric Mains Disturbances;

► Voltage Fluctuation and Low Harmonic Distortion

► Single Control Board Design for Easy Maintenance Service

► Power Factor Correction

► Harsh Environment Tolerance

► MTBF (Mean Time Before Failure) > 80,000hrs

► MTTR (Mean Time to Replacement) < 25mins

► Full Protection & Audible Alarm for :

► • Short Circuit Protection

► • Overload Constant Power Protection

► • Static Switch Protection

► • Over Temperature Protection

► • Two Stage Phase Lock Loop

► Generator Friendly

► CE Approved

SPECIFICATIONS

MODEL		SAF-1101	SAF-1103	SAF-110375	SAF-1105	SAF-1106	SAF-1108	SAF-1110
CAPACITY	KVA	1	3	3.75	5	6	8	10
	KW	0.7	2.1	3	4	4.8	6.4	8
INPUT
Phase		1Ø 2W+G (option: 1Ø 3W+G)					1Ø2W+G (option:1Ø 3W+G) or 3Ø3W+G or 3Ø 4W+G
Voltage (select one)		220V -15% +25%		220V -15% +25% or -30% +40% with AVR option			220V -15% +25%, or -30% +40% with AVR option; or 3Ø4W+G 380V Y -25% +30%
Frequency		50 or 60Hz ±5Hz (Option: 400Hz)
OUTPUT
Phase		1Ø 2W+G (option: 1Ø 3W+G)
Voltage (select one)		110V System: 100, 110, 115, 120V; 220V System: 200, 208, 220, 230, or 240V (±5% adjustable)
Voltage Regulation		± 1%
Frequency (select one)		50 or 60Hz (Option: a. 400Hz; b. 50/60Hz Selectable)
Frequency Stability		±0.5% (Free Running)
Transient Response		±3% (100% Load Variation)
Total Harmonic Distortion		<3% at 0~100% Linear Load
Waveform		Pure Sine Wave
Power Factor		0.7~1, lag
Crest Factor		3 : 1
Efficiency		>90%
PROTECTION
Over/Under Voltage		Alarm
Short Circuit		Current Limited, Auto Cut-off, Fuse and Circuit Breaker
Overload		>150% / Auto Shutdown
EMI/EMC		EN50091-2, CE Approved
AUDIBLE ALARM
Mains Failure		Beeping every 4 seconds and mute after 90 seconds
Overload		Continuously
Unit Fault		Continuously
INDICATORS
LCD		Real Time Stats, I/P&O/P Voltage and Frequency, Loading %, History record
LED		Utility LED (Green), Inverter LED (Green), Fault LED (Red), Overload (Yellow) & Warning
COMMUNICATIONS
RS-232 Interface		Standard, c/w Power monitoring software
DB-9 Connector		Option
SNMP Intelligent Slot		Power management from SNMP manager and Web browser (Option)
ENVIRONMENT
Operating Temp.		0℃~ 40℃ (32 ~ 104℉)
Relative Humidity		0~90% (Non-condensing)
Audible Noise		< 45dB @1meter
PHYSCIAL
Size (WxDxH/mm)		180x381x308	180x360x500	230x578x685			480x340x845
Net Weight (Kgs)		20	33	60	66	69	115	116
＊ All specifications are subject to change without prior notice.
＊ Custom-made specifications welcome.

OPTIONS

CUSTOMIZATIONS WELCOME

► Custom Input and Output Voltages and Frequencies

► 50Hz / 60Hz Output Frequency Selectable

► Output Frequency Adjustable

► 10% Output Voltage Adjustable

► Dual Input and Dual Output Voltage

► SNMP Intelligent Slot and Software

► Optional Bundle Software Automatically Save Your Valuable Files before Auto Shutdown

SERVICE & SUPPORT

WHY DO YOU HAVE TO BUY FREQUENCY CONVERTER?

1. Install Frequency Converter ahead of loading equipment. No need to re-modify.

2. Save money. Change of frequency will cause some internal alterations different to original design, the manufacturer would refuse to provide free warranty and repair.

3. In addition to Frequency Conversion, it can work as a Voltage regulator with more accurate and consistent voltage regulation rate.

4. Auto shutdown for overload, over / under voltage, over current, over temperature and short circuit protection.

5. Economical price if compare to AC Power Source / VARIABLE Frequency Converter.
