1 Phase On-line UPS, Tower Type - 6KVA~10KVA
Model：SUI-1106 to 10
Add in inquiry DownloadType:
Tower
Capacity:
Single Phase 6~10KVA
Made in
Taiwan, ROC
Add in inquiry DownloadType:
Tower
Capacity:
Single Phase 6~10KVA
Made in
Taiwan, ROC
• ATM / ADM
• Computers
• Computer Center
• Emergency Lightning
• Hospitals / Medical Instrument
• Lan File Server
• Network & Data Center
• OA Facilities
• Security Monitoring PC or Server
• Telecommunication Equipments
• Any Equipments which required
• High Stability Power Protection
High Performance
True Double Conversion On-line UPS !
• High Performance True Double Conversion On-Line UPS
• External Battery Bank (Option) to Extended Back-up Time
• Microprocessor Control Guarantees High Reliability
• Power Distribution Unit (PDU) for Input & Output Terminals
• Low Heat Dissipation in Long Time Operation
• Input THDi < 5%; Output THD < 2%
• Emergency Power Off Function (EPO)
• High Efficiency Mode (ECO Mode)
• Fan Speed Control & DC Start
• Output Voltage Regulation <1%
• Isolation Transformer (Option)
• Automatic Self-testing Function
• Power Management Software
• Output Power Factor 0.9
| Model | SUI-1106 | SUI-1106L | SUI-1110 | SUI-1110L | ||||||
| Capacity | 6KVA / 5.4KW | 6KVA / 5.4KW | 10KVA / 9KW | 10KVA / 9KW | ||||||
| INPUT | ||||||||||
| Phase | 1Phase 2Wire+G | |||||||||
| Voltage | 208 / 220 / 230 / 240Vac | |||||||||
| Frequency | 50Hz or 60Hz (Auto Sensing) | |||||||||
| THDi | < 5% with Resistor Full Load | |||||||||
| OUTPUT | ||||||||||
| Phase | 1 Phase 2 Wire+G or 1 Phase 3 Wires+G (With Isolation Transformer) | |||||||||
| Voltage | 1 Phase 2 Wire+G: 208 / 220 / 230 / 240Vac; 1 Phase 3 Wires+G: 110/220 or 115 / 230 or 120 / 240Vac |
|||||||||
| Voltage Regulation | +/-1% (+/-2% with Isolation Transformer) | |||||||||
| Waveform | Pure Sinewave | |||||||||
| THD | <2% (Linear Load) or <5% (Non-linear Load) | |||||||||
| Crest Factor | 3 : 1 | |||||||||
| EFFICIENCY | ||||||||||
| To AC Mode | >92% at Full Load and Battery Full Charged | |||||||||
| To Battery Mode | >92% at Full Load and 12Vdc / Battery | |||||||||
| ECO Mode | >96% at Full Load and Battery Full Charged | |||||||||
| BATTERY | ||||||||||
| Voltage | 240Vdc | |||||||||
| Type | 12V/7AH*20 | Extendable | 12V/9AH*20 | Extendable | ||||||
| Recharge Time | 7Hrs to 90% | Depend on Capacity of External Battery |
8Hrs to 90% | Depend on Capacity of External Battery |
||||||
| TRANSFER TIME |
||||||||||
| Line to Battery | 0ms | |||||||||
| Inverter to Bypass | 0ms | |||||||||
| ECO Mode to Inverter | < 10ms | |||||||||
| DISPLAY | ||||||||||
| LED | Normal (Green), Bypass (Yellow), Fault (Red), Battery (Yellow) | |||||||||
| LCD | Load Level / Battery Voltage / Battery Mode / AC Mode / Bypass Mode Information | |||||||||
| AUDIBLE ALARM | ||||||||||
| Battery Mode | Sounding every 4 seconds | |||||||||
| Low Battery | Sounding every second | |||||||||
| Overload | Sounding twice every second | |||||||||
| UPS Fault | Continuously sounding | |||||||||
| COMMUNICATIONS | ||||||||||
| Interface (Port) | Dry Contact (Option), USB | |||||||||
| Intelligent Slot | Slot for SNMP or AS-400 (Option) | |||||||||
| EPO | Emergency Power Off | |||||||||
| ENVIRONMENT | ||||||||||
| Temperature | 0~40°C (32°F~104°F) | |||||||||
| Humidity | 0~95% (Non-condensing) |
|||||||||
| Acoustic Noise | <50 dBA at 1 Meter distance | |||||||||
| PHYSICAL | ||||||||||
| Dimension (W*H*D) | Main UPS:192*347*623mm; Isolation Box with PDU:192*347*623mm; Battery:192*347*623mm |
|||||||||
* All specifications are subject to change without prior notice.

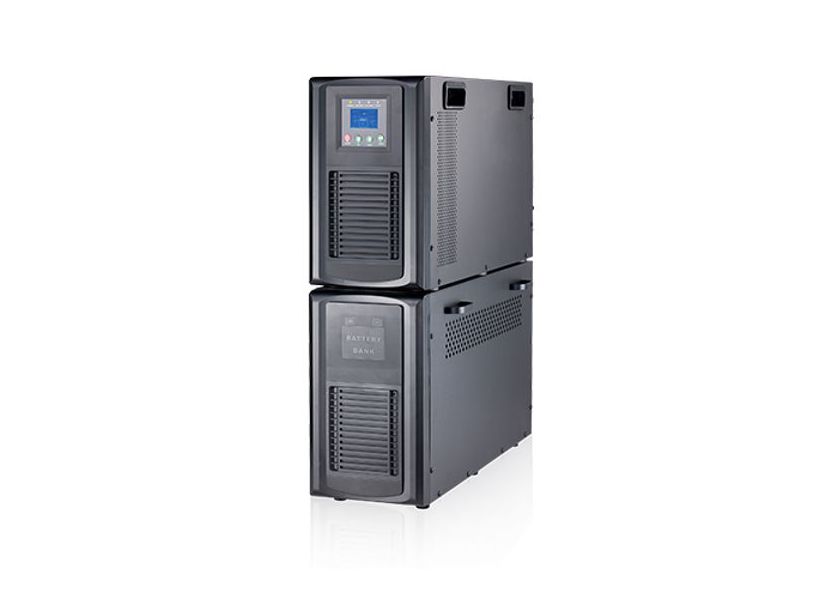

• External Battery Bank
To Extend Back-up Time
• External Isolation Transformer with PDU
With an external Isolation Transformer, the UPS will offer full isolation and complete common mode noise rejection (N-G = 0) for connected precious equipment.
It becomes an ideal power source with 100% protection against unexpected
AC Power problems.
Power Distribution Unit for SUI Series Tower Type On-line UPS
A "Power Distribution Unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within a data center.
SUI series 1KVA to 20KVA True Double Conversion On-Line UPS is made with "Power Distribution Unit (PDU)".
With PDU, UPS provides continuous power to the connected equipment during maintenance via a simple rotary switch.
With PDU, users or engineers do not need to unplug all connected devices anymore when UPS is going with regular maintenance. When UPS comes back from regular maintenance, engineers can simply assemble PDU with UPS and do not need to make a wire connection to utility power again. It efficiently saves cost and labor hours on UPS maintenance.
With PDU, On-Line UPS system becomes HOT SWAPPABLE
